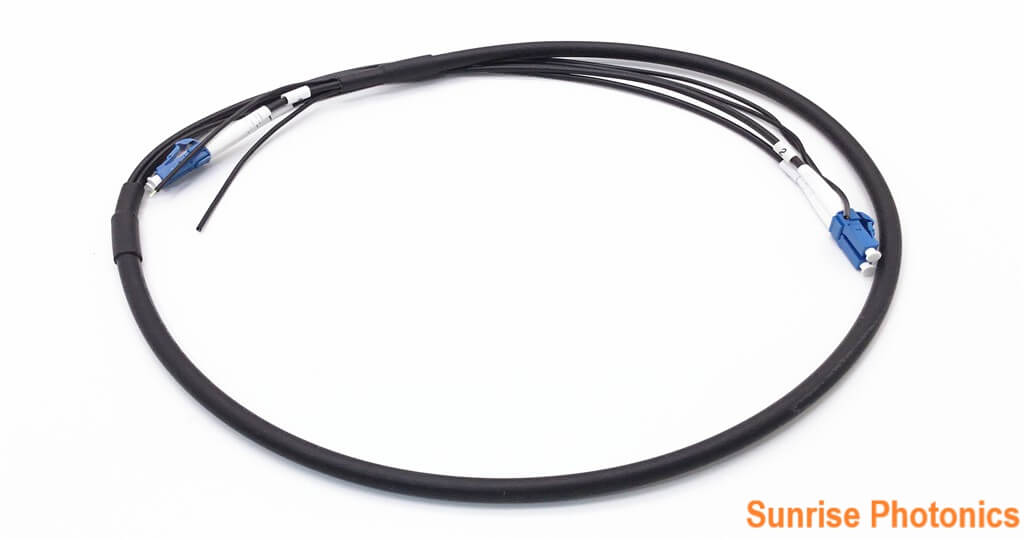

We make typical CPRI fiber optic patch cables for FTTA, the non-armored base station pull-out fiber jumper use 7mm LSZH black pull-out fiber optic cable.
Both ends in the form of break out structure, plus LC/SC/FC/ST fiber optic connectors, some applications, the two branches of the head part, using bellows or nylon mesh pull ring form to protect and strengthen. FTTA outdoor base station pull far traction, RRU to BBU port interconnection, 3G, 4G, 5G, LTE and distributed base stations, power communication systems, etc.
Fiber Count |
Cable Dimension mm |
Cable Weight kg/km |
Tensile N |
Crush N/100mm |
Min. Bend Radius mm |
Range of Temperature
|
|||
Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
2 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 |
Please note: 1. All the specs in the table, which are for reference only, are subject to change without notice; 2. D is outer diameter of the round optical cable. |
Specs | Parameter |
Connector type | SC/FC/LC/ST |
Insertion Loss | <=0.3db |
Return Loss | >=50db |
Fiber mode | Single mode 9/125 typical |
Operating wavelength | 1310nm, 1550nm |
Test wavelength | 1310nm, 1550nm |
Repeatability | <=0.1 |
Interchangeability | <=0.2dB |
Durability | <=0.2dB |
Fiber Length | 1m, 2m….. any length optional. |
Length and tolerance | 10cm |
Operating Temperature | -40C ~ +85C |
Storage Temperature | -40C ~ +85C |
