MPO/MTP to LC harness cables are used to fan out the 8/12/16/24/32 core MPO/MTP fibers into generic connectors, usually it is MPO/MTP to LC, but we can also make it MPO/MTP to SC/ST, FC, MTRJ, E2000, etc. The MPO/MTP harness cable is used to transit from backbone trunk cables to fiber management racks, cable jackets available are Mini-Core Plenum (OFNP), Mini-Core Riser (OFNR), Mini-Core Low Smoke Zero Halogen (LSZH), typical optical fiber types are single mode OS2, multimode OM1, OM2, OM3, OM4, OM5. The MPO/MTP to LC harness cables can be made with 2mm or 3mm ruggedized furcation legs in customized length, this will hep make it more rugged.
OS2 MPO-8LC Cable
All OS2 MPO-LC fiber cables have been strictly tested before leaving the factory to ensure that the end faces are spotless, and the insertion loss and return loss are in line with international telecommunication standards.

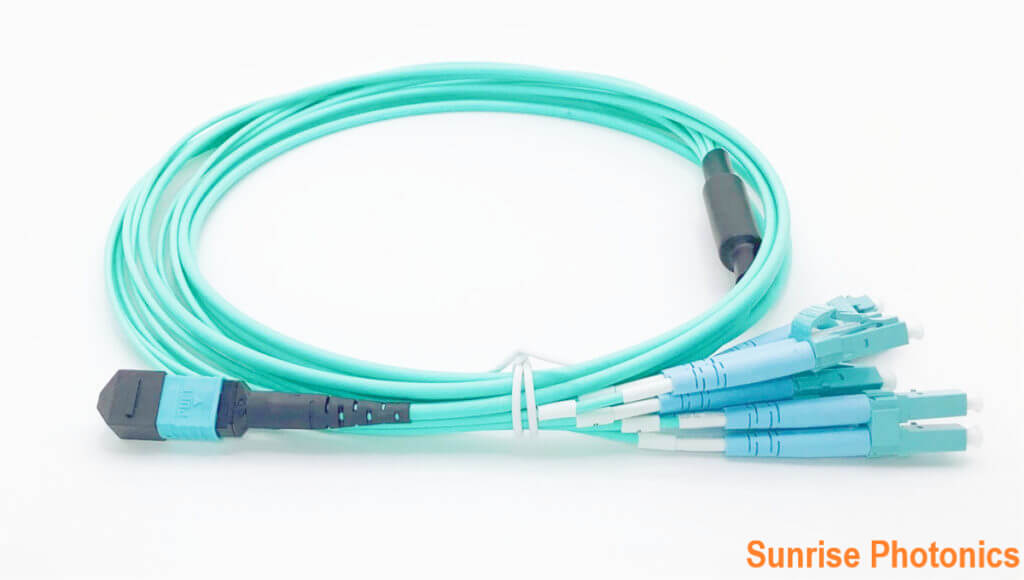

OM3 MPO-8LC Cable
MPO fiber optic cable for IDC and building fiber pre-termination system, to meet 10G Ethernet transmission, for 40G/100G system applications smooth upgrade. MPO cables facilitate rapidly deployable data center and fiber infrastructure environments.
OM4 MPO-8LC Cable
OM4 fiber is mainly used to support high-speed Ethernet, fiber channel and fiber interconnection. in a 10Gb/s system, it can transmit 550 meters. In a data center design, within a distance of 100 meters, it can support higher speeds (40Gb/s and 100Gb/s Ethernet, 16Gb/s and 32Gb/s fiber channel).
OS2 MPO-16LC Cable
All OS2 MPO-LC fiber cables have been strictly tested before leaving the factory to ensure that the end faces are spotless, and the insertion loss and return loss are in line with international telecommunication standards.
OM4 MPO-16LC Cable
MPO fiber optic cable for IDC and building fiber pre-termination system, to meet 10G Ethernet transmission, for 40G/100G system applications smooth upgrade. MPO cables facilitate rapidly deployable data center and fiber infrastructure environments.
OS2 MPO-24LC Cable
For high density fiber networks, the 24F MPO to 24 LC cables are the optimal choice. They have been specifically engineered to support fast ethernet, fiber channel, data center, and gigabit ethernet applications. The LSZH cable has been rigorously tested and designed to comply with IEC-60332-1 and IEC-61034 standards.
OM4 MPO-24LC Cable
SunrisePhotonics premium 24 fiber MPO to LC cables are your best choice for high density fiber networks. It’s specifically designed for fast ethernet, fiber channel, data center and gigabit ethernet applications. This LSZH cable is designed and tested to conform to IEC-60332-1 and IEC-61034.
Customized MPO Cables
With our professional team, we are able to meet the unique requirement of the MTP/MPO fiber optic products from clients. MPO/MTP product design services are focused on creating the best possible design for your application.
Connector A | MPO/MTP | Connector B | LC |
Fibre Mode | OS2 9/125μm SM | Wavelength | 1310/1550nm |
Polish Type | UPC/APC | Mini Bend Radius | 10mm |
Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥60dB |
Jacket OD | 3.0mm | Breakout Diameter | 2mm |
Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
Storage Temperature | -40°C to +85°C | Operating Temperature | -10°C to +70°C |
Connector A | MPO/MTP | Connector B | LC |
Fibre Mode | OM3 50/125μm | Wavelength | 850/1300nm |
Polish Type | UPC | Mini Bend Radius | 7.5mm |
Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥20dB |
Jacket OD | 3.0mm | Breakout Diameter | 2mm |
Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
Storage Temperature | -40°C to +85°C | Operating Temperature | -10°C to +70°C |
Connector A | MPO/MTP | Connector B | LC |
Fibre Mode | OM4 50/125μm | Wavelength | 850/1300nm |
Polish Type | UPC | Mini Bend Radius | 7.5mm |
Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥20dB |
Jacket OD | 3.0mm | Breakout Diameter | 2mm |
Installation Tensile Load | 66 N | Long-Term Tensile Load | 50 N |
Storage Temperature | -40°C to +85°C | Operating Temperature | -10°C to +70°C |
Connector A | MPO/MTP | Connector B | LC |
Fibre Mode | OM5 50/125μm | Wavelength | 850/1300nm |
Polish Type | UPC | Mini Bend Radius | 7.5mm |
Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥20dB |
Jacket OD | 3.0mm | Breakout Diameter | 2mm |
Color | Lime Green | Long-Term Tensile Load | 50 N |
Storage Temperature | -40°C to +85°C | Operating Temperature | -10°C to +70°C |
MPO/MTP to LC Harness Cables Features and Applications
- MTP/MPO 12/16/32 fiber female or male connectors on one end, with simplex generic connectors on the other end.
- 2mm or 3mm ruggedized furcation legs available in customized length to make it even stronger.
- Round Mini-core cable with minimal cable diameter for high density installations.
- High precision factory pre-terminated and tested MTP/MPO harness cable assemblies.
- Meet the standards of TIA/EIA and IEC.
Key Benefits of MPO/MTP to LC Harness Cables
- Fiber Types: OS2 G652D, G.657A1, 50/125 OM3, OM4, OM5
- Jacket standard colors: OS2 and G.657A1 yellow, OM3 and OM4 Aqua, OM5 Lime Green
- Connectors: 8/12/16 x Fiber Ferrule MPO/MTP connector female (Un-pinned) or male (Pinned)
- Cable cores: 8,12,16,24, 48, 72, 96, 144 cores Micro-Cable versions available
- Jacket materials: LSZH, OFNP (Plenum), OFNR (Riser)
- High Density Up to 144x Fibers in one cable
- Pulling eyes and reel types optional
- Fast Deployment: Modular cables and cassettes, make deployment and maintenance easier work
