The MTP/MPO fiber optic patch cables are constructed by a simplex mini core round or ribbon cable, this type of cable is available in 4, 8, 12, 24 and 48 fiber count types. we have both female type and male type MTP/MPO connectors. the MTP/MPO fiber patch cables jacket are Mini-Core Plenum (OFNP), Mini-Core Riser (OFNR), Mini-Core Low Smoke Zero Halogen (LSZH) types optional. the optical fiber types available is G652D OS2 single mode, G657 single mode bend insensitive, multimode OM1, OM2, OM3, OM4 and OM5. With our highly integrated MTP/MPO solution and manufacturing capability, sunrisephotonics provides customized MPO/MTP fiber patch cables that are 100% tested at our factory to deliver super performance and reliability.
OS2 MPO-12 Patch Cables
OS2 single mode MPO patch cable is factory pre-terminated 9/125 OS2 single mode MPO to MPO cable, which offers the user the advantage of consistent quality, much faster installation, and simpler cable management.

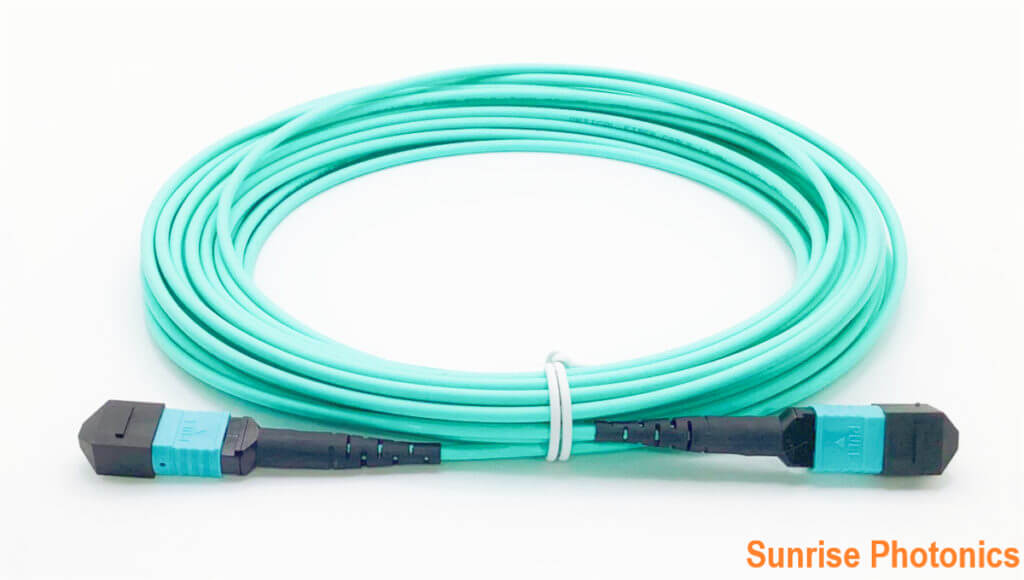

OM3 MPO-12 Patch Cables
As an experienced and innovative fiber optic cable manufacturer, Sunrise Photonics supplies complete MPO fiber optic cabling solutions for high density optical connectivity in the modern data center.
OM4 MPO-12 Patch Cables
OM4 MPO fiber optic patch cords are mainly used for 10G, 40G and 100G Ethernet. It is an optimized version of OM3 fiber optic patch cords. Therefore, all aspects of performance are better than OM3 fiber optic patch cords.
OS2 MPO-16 Patch Cables
OS2 single mode MPO patch cable is factory pre-terminated 9/125 OS2 single mode MPO to MPO cable, which offers the user the advantage of consistent quality, much faster installation, and simpler cable management.
OM3 MPO-16 Patch Cables
As an experienced and innovative fiber optic cable manufacturer, Sunrise Photonics supplies complete MPO fiber optic cabling solutions for high density optical connectivity in the modern data center.
OS2 MPO-24 Patch Cables
These trunk cables employ a compact and sturdy microcable structure and come in various colors, including SM, MM, and 10G MM. The fiber count ranges from 8,12,16,24,32 to 144, and the MTP/MPO polarity options include TIA Style A (up), Style B (down), and Style C (up/up). The cable length is customizable to meet specific requirements.
OM4 MPO-24 Patch Cables
These ribbon and trunk mulitcore cable assemblies feature compact and durable microcables that can interconnect cassettes, panels, or fan outs, and are available in fiber types with standard 8, 12, 16, 24, 32, up to 144 cores. The compact design optimizes cable way utilization and enhances airflow.
Customized MPO Patch Cables
With our professional team, we are able to meet the unique requirement of the MTP/MPO fiber optic products from clients. MPO/MTP product design services are focused on creating the best possible design for your application.
| Connector A | MPO/MTP | Connector B | MPO/MTP |
| Fibre Mode | OS2 9/125μm SM | Wavelength | 1310/1550nm |
| Polish Type | UPC/APC | Mini Bend Radius | 10mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥60dB |
| Jacket OD | 3.0mm | Cable Jacket | OFNR/OFNP/LSZH |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Storage Temperature | -40°C to +85°C | Operating Temperature | -10°C to +70°C |
| Connector A | MPO/MTP | Connector B | MPO/MTP |
| Fibre Mode | OM3 50/125μm | Wavelength | 850/1300nm |
| Polish Type | UPC | Mini Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥20dB |
| Jacket OD | 3.0mm | Cable Jacket | OFNR/OFNP/LSZH |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Storage Temperature | -40°C to +85°C | Operating Temperature | -10°C to +70°C |
| Connector A | MPO/MTP | Connector B | MPO/MTP |
| Fibre Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| Polish Type | UPC | Mini Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥20dB |
| Jacket OD | 3.0mm | Cable Jacket | OFNR/OFNP/LSZH |
| Installation Tensile Load | 66 N | Long-Term Tensile Load | 50 N |
| Storage Temperature | -40°C to +85°C | Operating Temperature | -10°C to +70°C |
| Connector A | MPO/MTP | Connector B | MPO/MTP |
| Fibre Mode | OM5 50/125μm | Wavelength | 850/1300nm |
| Polish Type | UPC | Mini Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥20dB |
| Jacket OD | 3.0mm | Cable Jacket | OFNR/OFNP/LSZH |
| Color | Lime Green | Long-Term Tensile Load | 50 N |
| Storage Temperature | -40°C to +85°C | Operating Temperature | -10°C to +70°C |
MPO/MTP Fiber Patch Cable Features and Applications
- MPO/ MTP connector in female (without pin) and male (with pin)
- Available in 4/8/12/16/24/48 cable fibers cores, round or ribbon cable structure.
- For interconnect between equipment, patching or backbone installation
- High precision factory pre-terminated and factory tested assemblies made according to IEC 61754-7, Telcordia GR-1435-CORE, RoHS
- Used in Data Centers, Storage Area Network- Fibre Channel, Parallel Optics, Infiniband and more.
Key Benefits of MPO/MTP Patch Cables
- Fiber Types: OS2 G.657A1, OM3, OM4, OM5
- Jacket standard colors: OS2 and G.657A1 yellow, OM3 and OM4 Aqua, OM5 Lime Green
- Connectors:12/16/24 x Fiber Ferrule MPO/MTP
- Jacket materials: LSZH, OFNP (Plenum), OFNR (Riser)
- Connector pins: Female (standard) and Male
- Polarity: A (standard), B or C
- MPO Interface: MPO/MTP fiber cables feature superior optical and mechanical properties
- High Density: Multi-fiber connector and compact small diameter cables save the space in costly data center environments
- Fast Deployment: Factory terminated modular MPO/MTP system saves installation and reconfiguration time.
