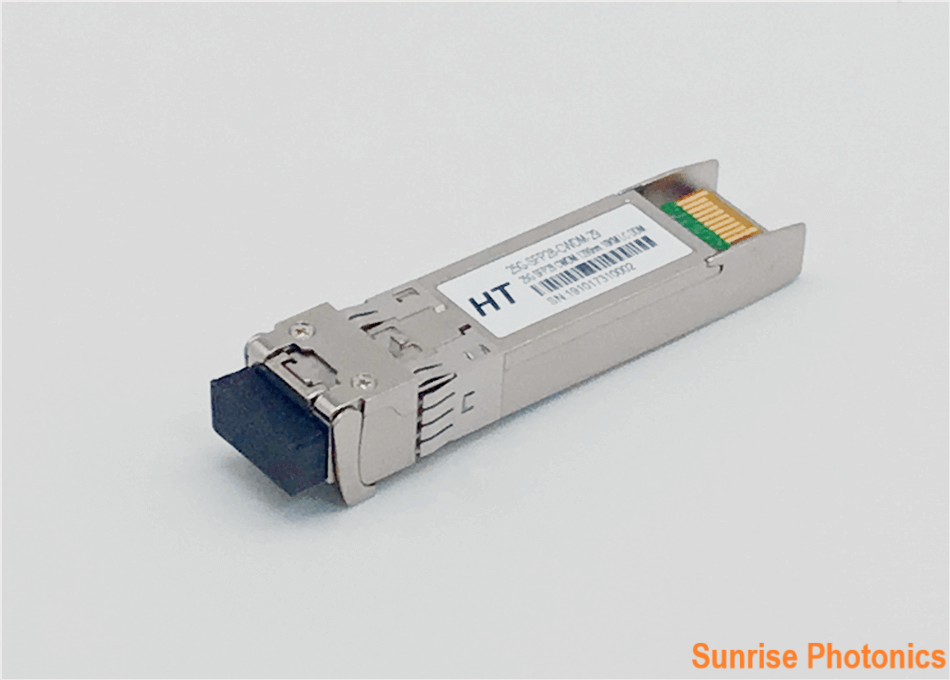

Cisco CWDM-SFP25G-1290-10 Compatible 25G 1290nm CWDM SFP28 10km DOM Transceiver Module.This 25G CWDM SFP28 transceiver is compatible with the Cisco SFP-25G-CWDM module. It is designed for Cisco 25 Gigabit Ethernet connectivity and CPRI10 applications. The 25G CWDM transceiver has the same programming and testing performance as the original Cisco 25GBase-CWDMSFP28 transceiver, but at a lower price.
This 25G CWDMSFP28 module features a highly reliable CWDMDFB transmitter and pin-type photodetector to a dual LC fiber optic connector that supports up to 10 km of links on single-mode fiber.
Features similar to the Cisco 25GBase-CWDM SFP28 transceiver
Support for 25GB/s data rate
Uncooled CWDM DFB transmitter, pin photodetector
Up to 10 km on single-mode fiber
Low power consumption 1.2W
Built-in digital diagnostics
Single 3.3V power supply RoHS compliant and lead-free
|Cisco Compatible||CWDM-SFP25G-1290-10||Vendor Name||sunrisephotonics|
|Form Type||SFP28||Max Data Rate||25Gbps|
|Wavelength||1290nm||Max Cable Distance||10km|
|Interface||LC duplex||Optical Components||DFB CWDM|
|Cable Type||SMF||DOM Support||Yes|
|TX Power||-7~3dBm||Receiver Sensitivity||<-11.3dBm|
|Protocols||MSA Compliant||Commercial Temperature Range||0 to 70°C (32 to 158°F)|
