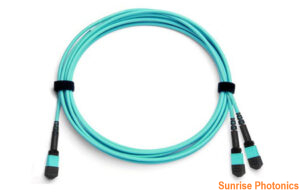

OM4 MPO/MTP-24 to 2X12 MPO/MTP conversion cables
This OM4 multimode cable enables the transfer of two 12-fiber optical signals onto a 24-fiber cable for transmission, its one end is terminated with a 24-fiber MTP/MPO connector and the other end terminated with two 12-fiber MTP/MPO connectors.
OS2 MPO/MTP-24 to 2X12 MPO/MTP conversion cables
This OS2 single mode cable enables the transfer of two 12-fiber optical signals onto a 24-fiber cable for transmission, its one end is terminated with a 24-fiber MTP/MPO connector and the other end terminated with two 12-fiber MTP/MPO connectors.
MPO/MTP-24 to 3 x MPO/MTP-8 OM4 conversion cables
This OM4 multimode conversion cable features a 24-fiber MTP/MPO connector on one end and three 8-fiber MTP/MPO connectors on the other, allowing users to convert their 24-fiber backbone trunks into Base-8 connections, thereby achieving 40G rates with ease.
MPO/MTP-24 to 3 x MPO/MTP-8 OS2 conversion cables
This OS2 single mode conversion cable features a 24-fiber MTP/MPO connector on one end and three 8-fiber MTP/MPO connectors on the other, allowing users to convert their 24-fiber backbone trunks into Base-8 connections, thereby achieving 40G rates with ease.
OM4 MPO/MTP-16 to 2X8 MPO/MTP conversion cables
This OM4 multimode cable enables the transfer of two 8-fiber optical signals onto a 16-fiber cable for transmission, its one end is terminated with a 16-fiber MTP/MPO connector and the other end terminated with two 8-fiber MTP/MPO connectors.
OS2 MPO/MTP-16 to 2X8 MPO/MTP conversion cables
This OS2 single mode cable enables the transfer of two 8-fiber optical signals onto a 16-fiber cable for transmission, its one end is terminated with a 16-fiber MTP/MPO connector and the other end terminated with two 8-fiber MTP/MPO connectors.
MTP/MPO cables are becoming increasingly popular in data centers due to their ability to handle high-density cabling for 40G/100G/400G connections. However, the base-12 MTP/MPO system presents a challenge in terms of fiber wastage. To address this issue, MTP/MPO conversion cables have been developed, which can convert the base-12 MTP/MPO backbone to the more cost-effective base-8 system.
MTP/MPO conversion cables, also known as conversion harness cables, have the same fanout form as MTP/MPO breakout cables but differ in fiber counts and types. They are terminated with only MTP/MPO connectors on both ends, making them ideal for high-density cabling. They can be used for 10G-40G, 40G-40G, 40G-100G, and 40G-120G direct connections, which help to avoid fiber wastage and increase the capacity and flexibility of the existing base-12 and base-24 MTP/MPO cabling systems.
There are three types of MTP/MPO conversion cables that are designed for different networking environments. The 1×2 MTP/MPO conversion cable is terminated with a 24-fiber MTP/MPO connector on one end and two 12-fiber MTP/MPO connectors on the other end, which enables a base-24 MTP cable to be integrated into the existing base-12 backbone MTP links to carry the signals. The transmitted data are split equally across two 12-fiber previously installed within the MTP/MPO system.
The 1×3 MTP/MPO conversion cable is terminated with a 24-fiber MTP/MPO connector on one end and three 8-fiber MTP/MPO connectors on the other end, which allows a base-24 backbone link to be converted into three base-8 cables so as to achieve 40G to 120G deployment. This conversion cable can create three 40G interfaces for QSFP+ modules, fully utilizing all the 24 fibers.
The 2×3 MTP/MPO conversion cable is terminated with two 12-fiber MTP/MPO connectors on one end and three 8-fiber MTP/MPO connectors on the other end, which allows converting the signals from three four-channel modules to two 12-fiber trunks and achieves full utilization of the 12-fiber system.
MTP/MPO conversion cables offer a flexible high-density cabling system that can largely increase the capacity of the existing 12-fiber and 24-fiber MTP/MPO networks. They are also a cost-effective solution for 40G/100G/120G connections. Depending on current demands and future network migration planning, users can choose suitable MTP/MPO conversion cables to suit their needs. MTP/MPO cables and MTP/MPO conversion cables provide a practical solution for high-density cabling in data centers. By reducing fiber wastage and increasing network capacity, these cables can help to streamline network deployment and offer more flexibility.
