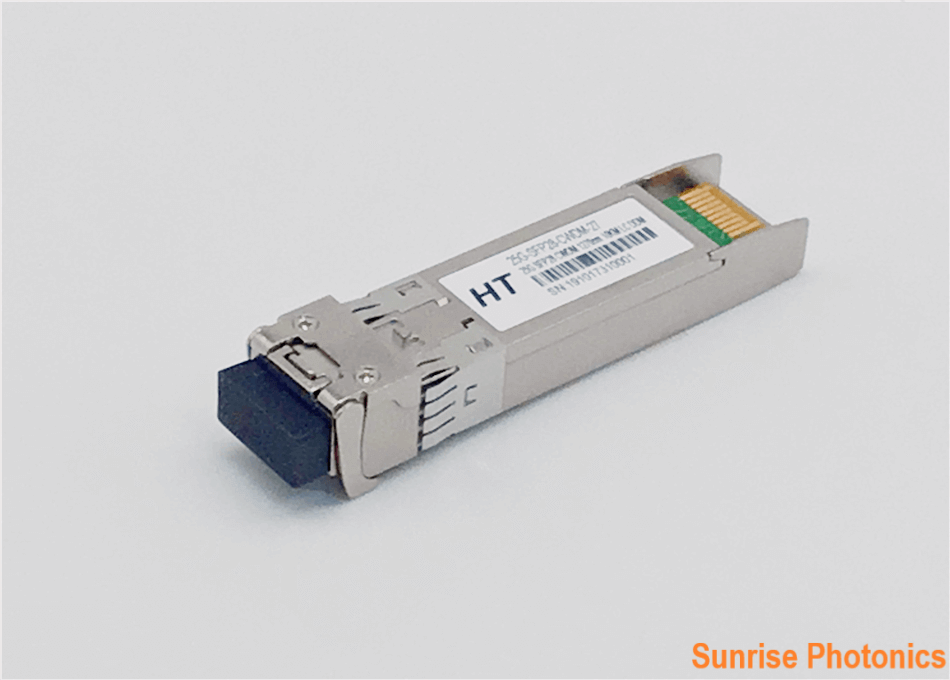

Cisco CWDM-SFP25G-1270-10 Compatible 25G 1270nm CWDM SFP28 10km DOM Transceiver Module.This 25G CWDM SFP28 transceiver is compatible with the Cisco SFP-25G-CWDM module. It is designed for Cisco 25 Gigabit Ethernet connectivity and CPRI10 applications. The 25G CWDM transceiver has the same programming and testing performance as the original Cisco 25GBase-CWDMSFP28 transceiver, but at a lower price.
This 25G CWDMSFP28 module features a highly reliable CWDMDFB transmitter and pin-type photodetector to a dual LC fiber optic connector that supports up to 10 km of links on single-mode fiber.
Characteristics
Features similar to the Cisco 25GBase-CWDM SFP28 transceiver
Support for 25GB/s data rate
Uncooled CWDM DFB transmitter, pin photodetector
Up to 10 km on single-mode fiber
Low power consumption 1.2W
Built-in digital diagnostics
Single 3.3V power supply RoHS compliant and lead-free
Cisco Compatible | CWDM-SFP25G-1270-10 | Vendor Name | sunrisephotonics |
Form Type | SFP28 | Max Data Rate | 25Gbps |
Wavelength | 1270nm | Max Cable Distance | 10km |
Interface | LC duplex | Optical Components | DFB CWDM |
Cable Type | SMF | DOM Support | Yes |
TX Power | -7~3dBm | Receiver Sensitivity | <-11.3dBm |
Protocols | MSA Compliant | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
