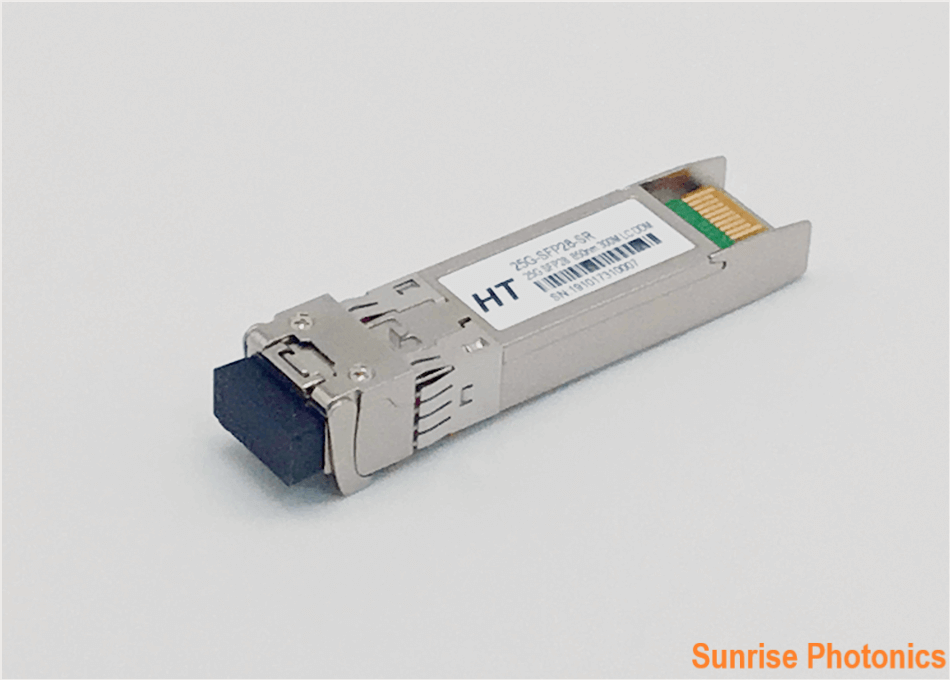

Cisco SFP-25G-SR-S Compatible 25GBASE-SR SFP28 850nm 100m DOM Transceiver Module.This SFP-25G-SR-S compatible 25G SFP28 SR transceiver is designed for Cisco 25 Gigabit Ethernet connectivity in data centers and high-performance computing network ingress. It is programmed and tested to perform the same original Cisco SFP-25G-SR-SR Base-SFP28 module and provides a cost-effective alternative. Available for 25 GE SFP28 ports, including Cisco fiber switches, routers, line cards, etc.
The SFP28 SR module supports the maximum link of 100 meters on the OM3 70 m or OM4 multimode fiber.
Characteristics
Features similar to Cisco SFP-25G-SR-S
Hot-swap sfp28 form factor
Support for 25GB/s data rate
850nm VCSEL transmitter, pin photodetector
The distance on the OM4 multi-mode fiber can be up to 100 meters
Duplex LC Connector
Built-in digital diagnostics Single 3.3V power supply
| Cisco Compatible | SFP-25G-SR-S | Vendor Name | sunrisephotonics |
| Form Type | SFP28 | Max Data Rate | 25Gbps |
| Wavelength | 850nm | Max Cable Distance | 100m @ OM4 MMF |
| Interface | LC duplex | Optical Components | VCSEL 850nm |
| Cable Type | MMF | DOM Support | Yes |
| TX Power | -8.4~-2.4dBm | Receiver Sensitivity | <-10.3dBm |
| Protocols | MSA Compliant | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
