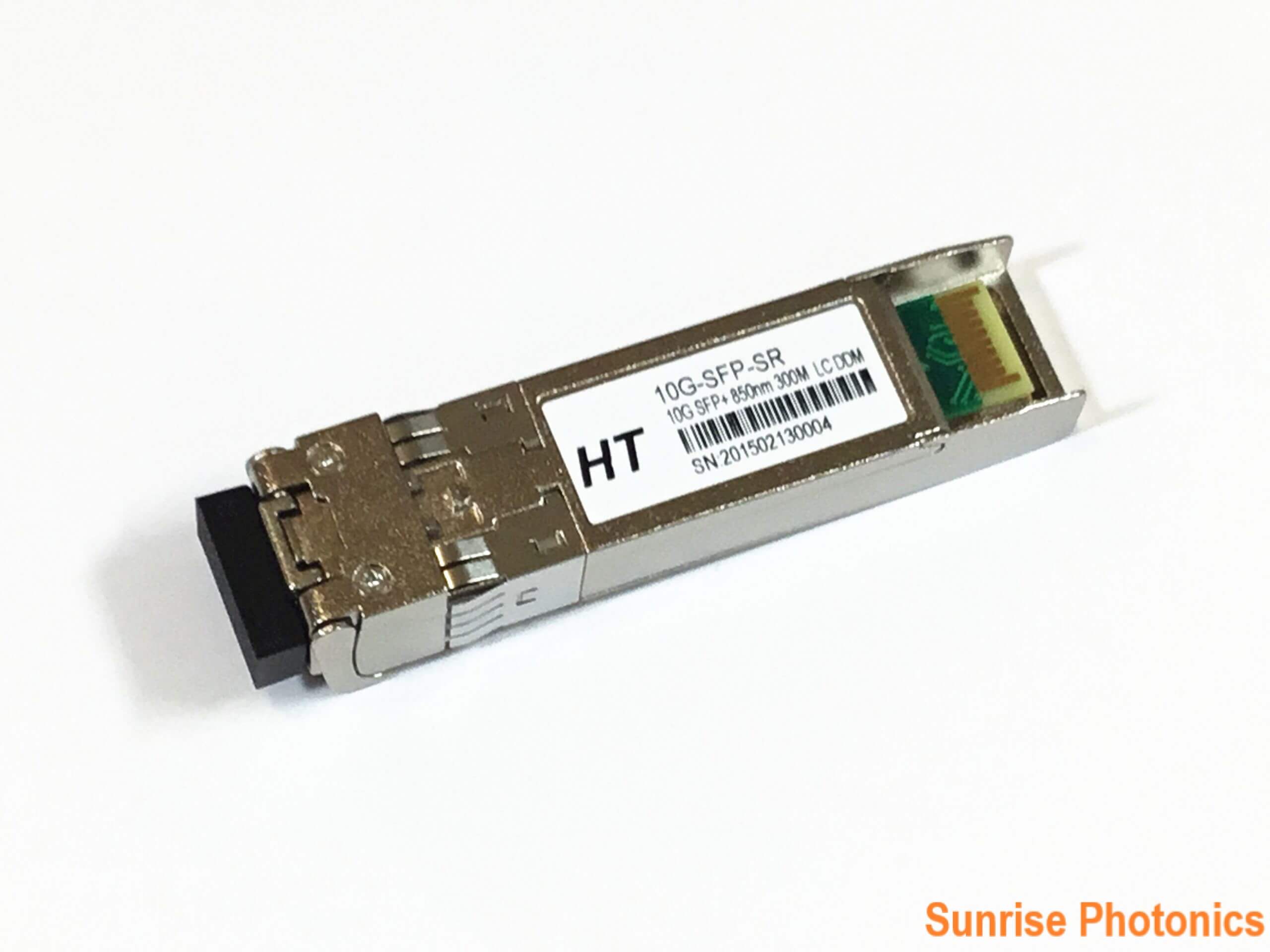

SFP 10G SR is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The SFP 10G SR converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification. The high performance 850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 300m links.
SFP 10G SR Features:
1. Supports 9.95 to 11.3Gb/s bit rates
2. Hot-Pluggable
3. Duplex LC connector
4. 850nm VCSEL transmitter, PIN photo-detector
5. MMF links up to 300m
6. 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
7. Power Supply :+3.3V
8. Power consumption<1W
9. Temperature Range: 0~ 70°C
10. RoHS compliant
SFP 10G SR Applications:
10GBASE-SR/SW Ethernet
SONET OC-192 / SDH
10G Fibre Channel
